DIABLO

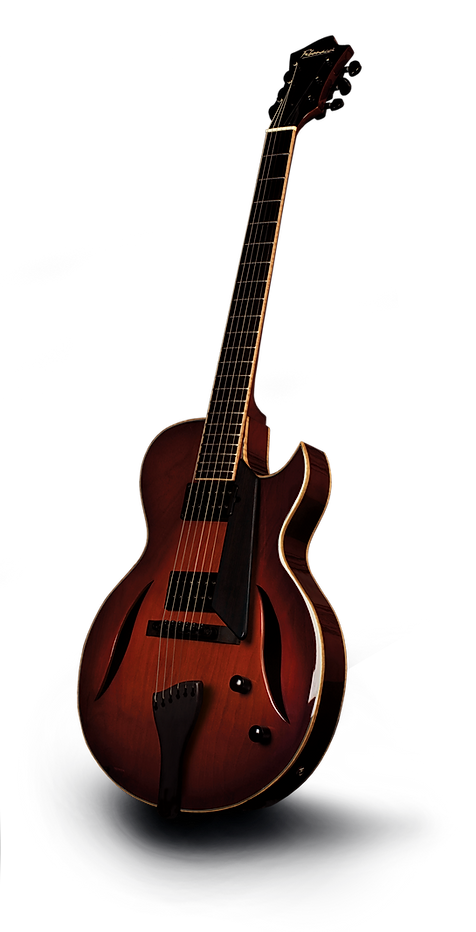

The Diablo is a 350mm (13.77”) x 56mm (2.2") archtop guitar with florentine cut-away, produced with carved, hand graduated Carpathian spruce soundboard, carved European flame maple back & sides, a maple neck, and complemented with solid maple binding throughout. The DIABLO comes as standard with ebony fingerboard, scratch-plate, floating bridge & tailpiece.

Carved
Spruce Top
Carved Flame Maple Back
& Sides
-
Body Style- Arched back and top, Florentine Cut-away
-
Body Width at Lower Bout- 350mm (13.77")
-
Body Length- 465mm (18.3")
-
Body Depth- 56mm (2.2")
-
Top Wood- Carved Carpathian Spruce
-
Back & Sides- Carved European Flame Maple
-
Body Binding- Solid Maple
-
F Hole Binding- N/A
-
Nut- Bone
-
Neck Profile- 43mm (1.69") Nut,
-
57mm (2.24") End Fret 12" Radius
-
Neck Construction- Flame Maple
-
Neck Binding- Flame Maple
-
Finger Board- Ebony Fingerboard, No Inlay
-
Neck Scaling- 628mm, (24.72") Dove Tail Joint at 15 F
-
Frets- 22 Polished Jescar EVO Gold
-
Bridge- Ebony Floating
-
Finger Rest- Ebony Floating
-
Tailpiece- Ebony Floating
-
Tuners- Cosmo Black Gotoh SGS510Z
-
Pickup- OX4 Set-in Humbucker as standard
-
Pots- Premium CTS 500K Audio Sweep Tone/ Volume with Ebony Knobs
-
Caps- WD Oil & Paper 0.47
-
Output Jack- Switchcraft Gotoh Plate
-
Wiring- Shielded Braided Steel
-
Finish- Red Sienna Sunburst Nitrocellulose
-
Strings- Thomastik Infield 11 - 49
-
Case- Hiscox Insulated Flight Case
-
Weight- 2.3kg
Completely hand wired in shielded, steel braided cable for increased performance and stability, and fitted with a 'set-in' OX4 handwound, black humbucker as standard. The DIABLO is beautifully finished in red Sienna Sunburst with nitro cellulose lacquer, with the black chromed Gotoh SGS510Z tuners contributing to this little archtop’s distinctive, contemporary vibe.
Nitrocellulose
Finishing
Gotoh Tuners,
Premium CTS,
Switchcraft Components
Set-in OX4
Humbucker


Shielded Steel
Braided Wiring
Ebony
Peripherals


RRP
£3,799.99
Inc Hiscox
Flight Case
